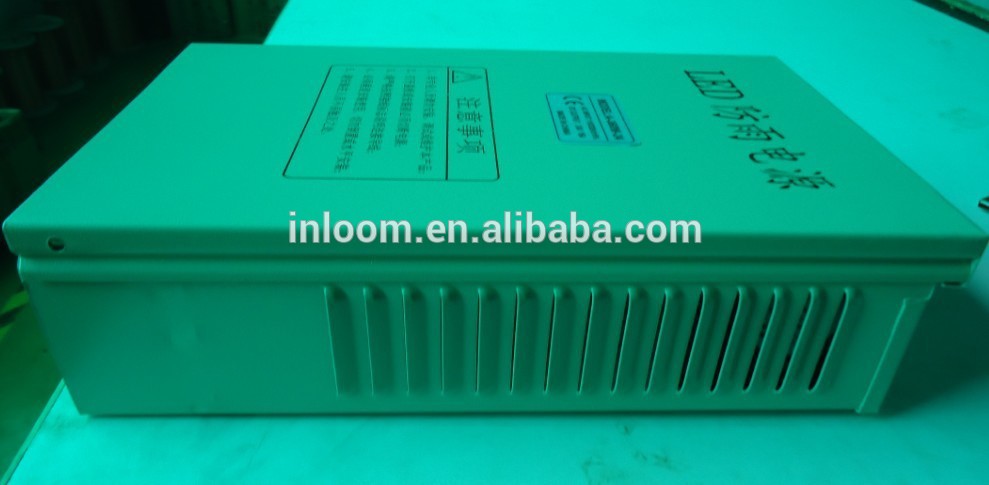

400W waterproof ,rainproof switching power supply,LED power supply
Overview
Quick Details
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
ILM
- Model Number:
-
ILMWSP-001
- Output Power:
-
301 – 400W
- Output Type:
-
Single
- Input Voltage:
-
110V-240VAC
- Output Frequency:
-
50/60HZ
- Output Current:
-
8-33A
- Switching power supply:
-
400W
- Single ouput power supply:
-
400W
- Output Voltage:
-
12-48VDC
1. 3 years warranty
2. 85~264VAC full range of input or input select by switch
3. Low cost, High operating reliability at high temperature
4. Forced air cooling by built in DC fan
5. Protections: Over-load, over-voltage, over-current, over-temperature, short circuit protections
Over-load protection: Max.150% (Fold back current limiting, recover automatically after problems removal)
Over voltage protection: Max.135% (Hiccup mode, recovers automatically after faulty problems removal)
6. LED indicator for power on
7. 100% burn-in tests (at full load)
8. Built-in cooling Fan ON-OFF control
9. Suitable for many types of LED lights, LED electronics screen, Industrial control products, instruments & equipements, safety-guard products, advertisements.
10.Life span: greater than 50000hrs
11.MTBF:greater than 250Khrs
12.Withstand voltage: I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC
13.Working temperature: -10~60°C
| Model | ILM-12 | ILM-13.5 | ILM-15 | ILM-24 | ILM-27 | ILM-48 |
| Rated output | 12VDC/33.3A | 13.5VDC/29.6A | 15VDC/26.7A | 24VDC/16.7A | 27VDC/14.8A | 48VDC/8.33A |
| Rated power | 400W | 400W | 400W | 400W | 400W | 400W |
| Efficiency | 76% | 79% | 81% | 81% | 82% | 83% |
